1-3/4" Backset Customizable Watford Thumbturn Privacy Bolt

Thumbturn Privacy Bolt – 1-3/4" Backset for Narrow Stile Doors
Classic Watford Rosette | Solid Brass Construction

Designed specifically for narrow stile doors, this thumbturn privacy bolt offers a compact, reliable locking solution with timeless appeal. The 1-3/4" backset makes it ideal for doors where space is limited but design integrity matters.

To lock, turn the interior thumbturn. To unlock, turn it back. In an emergency, the bolt can be released from the outside using the included coin-release mechanism.

Design Details

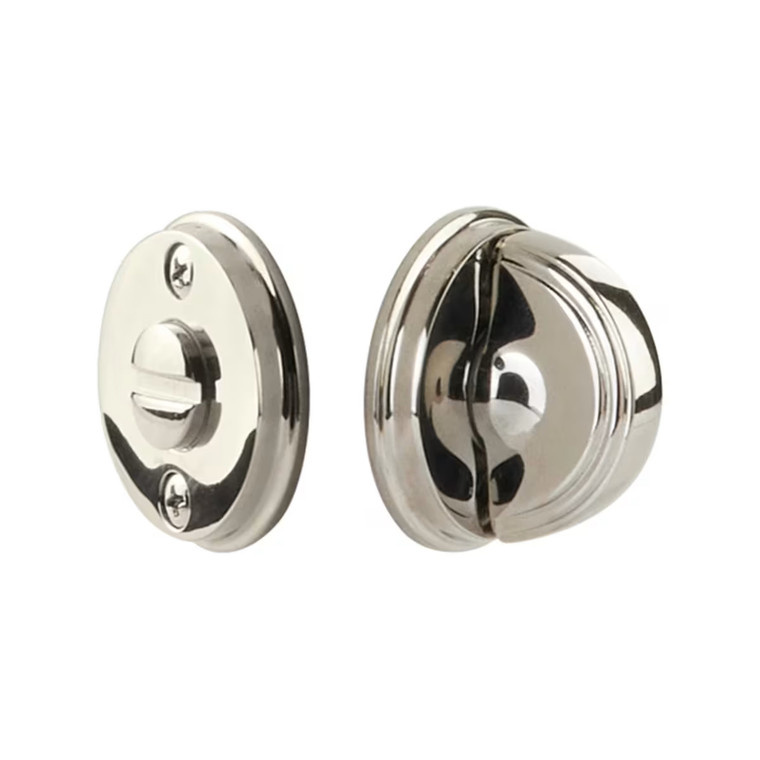

• Rosette Style: Watford – round with a stepped edge for a refined, traditional profile

• Thumbturn Style Shown: Arched Step – half-moon shape with a step at the edge, complementing the Watford rosette beautifully

Other Available Thumbturn Styles

• Rectangular Step – bold and architectural with stepped detailing

• Arched – smooth and modern half-moon shape

• Rectangular – clean, contemporary rectangular design

Finish Shown: Polished Nickel

Available Trim Finishes:
Polished Brass Lifetime, Satin Brass, French Antique, Oil-Rubbed Bronze, Polished Nickel Lifetime, Satin Nickel, Pewter, Flat Black, Polished Chrome, and Polished Brass Unlacquered (which develops a natural antique patina over time)

Mortise Bolt Finishes:
Polished Brass, Oil-Rubbed Bronze, Flat Black, Satin Stainless Steel – we’ll provide the finish that most closely matches your selected trim

Specifications

• Door Thickness: 1-3/8" to 2-3/4" (Call for thinner doors)

• Mortise Size (door edge): 5/8" W x 1-1/4" H x 2-5/16" D

• Bore Size (through door face): 5/8"

• Faceplate: 2-1/4" H x 5/8" W

• Strikeplate: 2-3/4" H x 7/8" W

• Watford Rosette: 1-1/2" Diameter x 1/4" Thick

Set Includes

Interior rosette with thumbturn, exterior rosette with coin release, mortise bolt, mortise bolt hub, faceplate, strikeplate, emergency release coin, and matching screws.

Other Styles

Our 1-3/4" backset thumbturn privacy bolts are available in with disk, square, watford, and wilshire rosettes with choice of thumbturn and in pre-configured classic and modern styles.
