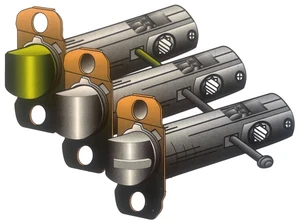

Custom Backset Passage Latch With Superior Spring

Custom Backset Passage Latch With Superior Spring

SKU:
Custom Backset Passage
$305.10 - $931.50
(No reviews yet)

This custom backset passage latch is built to your specified length, making it the ideal solution for non-standard door preparations where standard backsets won’t work. Available in a wide range of backsets, this latch is made to order for your exact application.

Online sizes range from 1.5" to 30" backset.
For sizes not listed, call 215-247-0945 for pricing and ordering.

Features

  • Heavy-duty construction for durability and long-term use
  • High-quality internal spring for smooth, reliable operation

Compatibility

  • Works with Emtek passage sets
  • May work with other brands, but only tested with Emtek

Important Installation Notes

  • Requires a 1" bore hole on the edge of the door
  • The bore must be drilled very straight for proper function
  • The latch should slide easily into the bore hole
  • Do not tap into place as this may cause damage or breakage
  • The 1" edge bore must extend past the 2-1/8" face bore

Function Options

  • Lever-by-lever:
    • 28° downward rotation retracts the latch
    • Uses a stronger spring to return levers to upright position
  • Knob-by-knob:
    • 52.5° rotation in either direction retracts the latch

Dimensions

  • Backset: Distance from edge of door to center of bore hole
  • Hub: Accepts an 8mm square spindle or a 7.3mm diamond spindle. Call 215-247-0945 for other spindle sizes
  • See dimensional diagram (dimensions shown in millimeters)

Finish Options

Available in a full range of finishes:
Polished Brass (Lacquered), Polished Brass (Unlacquered), Satin Brass, Antique Brass, Oil-Rubbed Bronze, Polished Nickel, Satin Nickel, Antique Nickel, Black, Polished Chrome, Satin Chrome, Polished Stainless, and Satin Stainless

What’s Included

  • Backset latch
  • Faceplate
  • T-strike plate
  • Dust box
  • Mounting screws

Lead Time & Policies

  • Lead time: 2–3 weeks before shipping
  • Custom item: Not returnable
  • Orders may not be cancelable once placed
  • No warranty on custom-made latches
Current Stock:
Adding to cart… The item has been added
Description

This custom backset passage latch is built to your specified length, making it the ideal solution for non-standard door preparations where standard backsets won’t work. Available in a wide range of backsets, this latch is made to order for your exact application.

Online sizes range from 1.5" to 30" backset.
For sizes not listed, call 215-247-0945 for pricing and ordering.

Features

  • Heavy-duty construction for durability and long-term use
  • High-quality internal spring for smooth, reliable operation

Compatibility

  • Works with Emtek passage sets
  • May work with other brands, but only tested with Emtek

Important Installation Notes

  • Requires a 1" bore hole on the edge of the door
  • The bore must be drilled very straight for proper function
  • The latch should slide easily into the bore hole
  • Do not tap into place as this may cause damage or breakage
  • The 1" edge bore must extend past the 2-1/8" face bore

Function Options

  • Lever-by-lever:
    • 28° downward rotation retracts the latch
    • Uses a stronger spring to return levers to upright position
  • Knob-by-knob:
    • 52.5° rotation in either direction retracts the latch

Dimensions

  • Backset: Distance from edge of door to center of bore hole
  • Hub: Accepts an 8mm square spindle or a 7.3mm diamond spindle. Call 215-247-0945 for other spindle sizes
  • See dimensional diagram (dimensions shown in millimeters)

Finish Options

Available in a full range of finishes:
Polished Brass (Lacquered), Polished Brass (Unlacquered), Satin Brass, Antique Brass, Oil-Rubbed Bronze, Polished Nickel, Satin Nickel, Antique Nickel, Black, Polished Chrome, Satin Chrome, Polished Stainless, and Satin Stainless

What’s Included

  • Backset latch
  • Faceplate
  • T-strike plate
  • Dust box
  • Mounting screws

Lead Time & Policies

  • Lead time: 2–3 weeks before shipping
  • Custom item: Not returnable
  • Orders may not be cancelable once placed
  • No warranty on custom-made latches
