Custom Backset Privacy Latch With Rounded End

This custom backset privacy latch is built to your specified length, making it the ideal solution for non-standard door preparations where standard backsets won’t work. Available in a wide range of backsets, this latch is made to order for your exact application.

Online sizes range from 2-5/8" to 30" backset.
For sizes not listed, call 215-247-0945 for pricing and ordering.

Features

• Heavy-duty construction for durability and long-term use
• Its rounded end allows this latch to fit in a 2-1/8" bore hole drilled in the face of the door at the specified backset
• Privacy locking: Press the privacy pin into the latch to prevent rotation from the other side. Turn the hub from the inside, press the nosebolt in, or push the pin out to unlock the latch

Compatibility

• Works with Emtek privacy sets with standard rotation and exposed screws
• Does not work with Emtek Stretto lever sets
• Does not work with Emtek 28° rotation lever sets
• Does not work with Emtek levers with concealed screws
• See here for a custom latch that will work with Stretto, 28° rotation, and concealed screw Emtek levers
• May work with other brands, but only tested with Emtek

Important Installation Notes

• Requires a 1" bore hole on the edge of the door
• The bore must be drilled very straight for proper function
• The latch should slide easily into the bore hole
• Do not tap into place as this may cause damage or breakage

Function Options

• 52.5° rotation in either direction retracts the latch
• Available in lever by lever or knob by knob functions
• The lever by lever function uses a stronger spring
• For a thumb latch grip handle function, call 215-247-0945
• See here for a custom 28° rotation latch, which is more comfortable for levers

Dimensions

• Backset: Distance from edge of door to center of bore hole
• Hub: Accepts an 8mm square spindle or a 7.3mm diamond spindle. Call 215-247-0945 for other spindle sizes

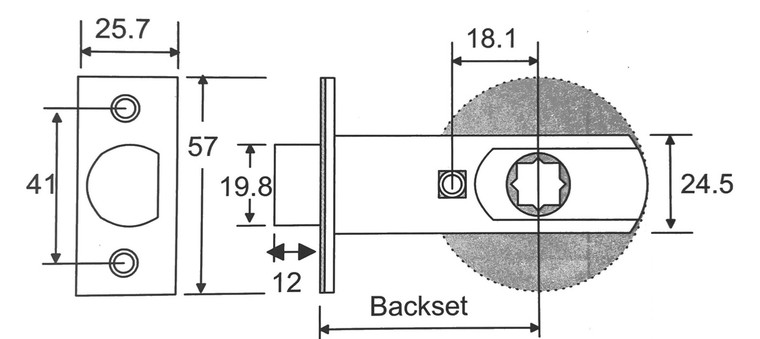

• See dimensional diagram (dimensions shown in millimeters)

Finish Options

Available in a full range of finishes:
Polished Brass (Lacquered), Polished Brass (Unlacquered), Satin Brass, Antique Brass, Oil-Rubbed Bronze, Polished Nickel, Satin Nickel, Antique Nickel, Black, Polished Chrome, Satin Chrome, Polished Stainless, and Satin Stainless

What’s Included

• Backset latch
• Faceplate
• T-strike plate
• Dust box
• Mounting screws
• Privacy pin

Lead Time & Policies

• Lead time: 2–3 weeks before shipping
• Custom item: Not returnable
• Orders may not be cancelable once placed
• No warranty on custom-made latches
