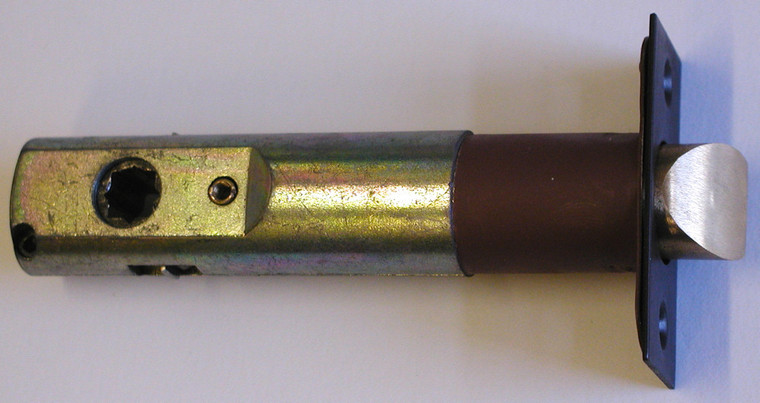

Custom Backset Privacy Latch With Superior Spring

This custom backset privacy latch is built to your specified length, making it the ideal solution for non-standard door preparations where standard backsets won’t work. Available in a wide range of backsets, this latch is made to order for your exact application.

Online sizes range from 2-5/8" to 30" backset.
For sizes not listed, call 215-247-0945 for pricing and ordering.

Features

• Heavy-duty construction for durability and long-term use
• High-quality internal spring for smooth, reliable operation
• Privacy locking: Press the privacy pin into the latch to prevent rotation from the other side. Turn the hub from the inside, press the nosebolt in, or push the pin out to unlock the latch

Compatibility

• Works with Emtek privacy sets
• May work with other brands, but only tested with Emtek

Important Installation Notes

• Requires a 1" bore hole on the edge of the door
• The bore must be drilled very straight for proper function
• The latch should slide easily into the bore hole
• Do not tap into place as this may cause damage or breakage
• The 1" edge bore must extend past the 2-1/8" face bore
  • See alternate version if you need one that does not extend past the face bore

Function Options

• Lever-by-lever:
  • 28° downward rotation retracts the latch
  • Uses a stronger spring to return levers to upright position
• Knob-by-knob:
  • 52.5° rotation in either direction retracts the latch

Dimensions

• Backset: Distance from edge of door to center of bore hole
• Hub: Accepts an 8mm square spindle or a 7.3mm diamond spindle. Call 215-247-0945 for other spindle sizes
• See dimensional diagram (dimensions shown in millimeters)

Finish Options

Available in a full range of finishes:
Polished Brass (Lacquered), Polished Brass (Unlacquered), Satin Brass, Antique Brass, Oil-Rubbed Bronze, Polished Nickel, Satin Nickel, Antique Nickel, Black, Polished Chrome, Satin Chrome, Polished Stainless, and Satin Stainless

What’s Included

• Backset latch
• Faceplate
• T-strike plate
• Dust box
• Mounting screws
• Privacy pin

Lead Time & Policies

• Lead time: 2–3 weeks before shipping
• Custom item: Not returnable
• Orders may not be cancelable once placed
• No warranty on custom-made latches
