Customizable Bronze Tuscany Narrow Stile Passage Set With 11" Plates And 1-3/8" Or 1-3/4" Backset

As a solution for doors with narrow stiles, we are offering customizable Bronze Tuscany passage sets. We combine this Emtek trim with robust, stainless steel mortise locks and suitable strikeplates. The passage function is operable from both sides at all times and does not lock.

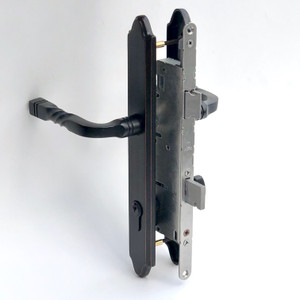

Shown is a 1-1/2" wide x 11" tall Bronze Tuscany backplate with an Octagon lever in Medium Bronze finish.

These mortise locks are salt spray tested and can be used in coastal environments. The mortise locks have a stainless steel faceplate on the edge of the door. This stainless steel strip will be concealed when the door is closed.

The strikeplates are available in Oil-Rubbed Bronze and Black. We will provide a strikeplate that most closely matches the finish of the trim.

View the diagrams to see what the measurements are like on example doors. Please consider the width of your door stop or astragal to make sure it will not overlap with the 1-1/2" wide trim. We have also included a diagram to help you determine handing and if your door is in-swing or out-swing. The exterior is the outside of the building for an exterior door, the hallway side for a room, or the room side for a closet.

1-3/4" backset mortise locks require a mortise depth of 2.48", while 1-3/8" backset mortise locks require a 2.09" mortise depth.

This page allows easy ordering of typical narrow backset passage sets with 1-3/8" or 1-3/4" backsets. The doors should have a minimum stile width of 2-3/8". The doors need to be 1-3/8" to 2-1/4" thick.

For keyed entry sets, click here. For dummy sets, click here.

For any other functions, including privacy, please call 215-247-0945. For doors thicker than 2-1/4", please call to order. If you require 1", 1-3/16", 1-9/16", 2-3/8" or 2-3/4" backsets, please call to order.
