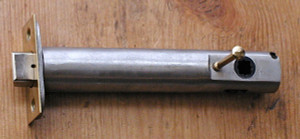

Extra Long 3", 4", and 5" Backset Passage Latches

Suitable for passage locks only.

Hub is 8mm on the square.

Will work with Emtek, Frank Allart and Omnia passage locks.

Shown in Polished Brass, Unlacquered. Available in many other finishes.

Provided with a T-strike, dust box and wood screws.

Faceplate measures 1" x 2-1/4".

Boring measures 13/16" x 9/16". Fits in a 1" diameter hole.

Required boring depth is the backset plus 7/8".

Springing is for knobs or levers with sprung rosettes. For unsprung rosettes with levers, a latch with a heavier spring is available.
