Top quality sealed ball bearing sash pulley with 2 1/4" diameter wheel. Very uniform and precise. Suitable for production work.
Standard Finish: Satin Brass, Lacquered
Other finishes pictured below. Select finish from pull down menu to order.
Uses up to #10 sash cord or up to #45 sash chain.
Faceplate dimensions: 1 1/8" x 5 7/16".
Housing dimensions: 1 7/8" x 3 1/4" x 13/16".
Center of chain or rope will be 1-7/8" back from face of window jamb. With 7/8" thick window jamb the pocket will accomodate up to 1-3/4" diameter sash weights. See our model 250 for larger weights or thicker jamb.
|

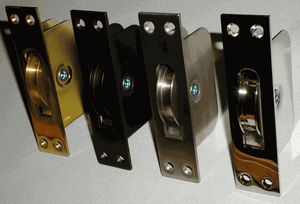

 | |  |  | |  |  | - Finishes shown from left to right: Oil-Rubbed Bronze, Polished Brass, Satin Brass, Polished Nickel, and Satin Nickel.

|  |
|
