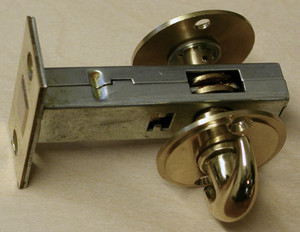

Standard Emtek Passage Backset 2-3/8" Or 2-3/4"

Keep your Emtek hardware working smoothly with this spare passage latch backset, available in 2-3/8" or 2-3/4" sizes. Designed for use with Emtek passage sets, it’s a direct replacement part for standard installations.

• Options: Choose between brass or chrome nose bolts

• Compatibility: Fits Emtek passage sets with standard rotation latches

• Note: Will not work with 28-degree rotation passage sets

• Parts Included: Backset only (does not include screws, faceplate, or other components)

• Dimensions:
  • Backset: 2-3/8" or 2-3/4"
  • Fits a 3/8" spindle on the diamond or an 8mm spindle on the square
  • Front plate: 2.22" tall x 0.99" wide
  • Center-to-center of screw holes: 1.65"
  • Fits in a 1" bore hole
  • Nosebolt protrusion: 0.50"
  • Maximum overall length: 3.77" (2-3/8" backset) or 4.16" (2-3/4" backset)

A practical solution for replacing worn or damaged latches without having to purchase a full passage set.
