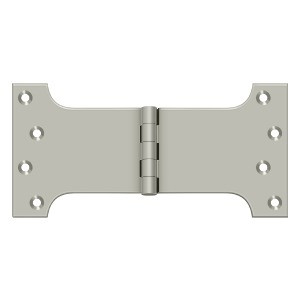

7" Parliament Shutter Hinge

Parliament style lift off shutter hinges. Made of steel with solid brass pin.

Heavy duty .140" thick material.

Zinc plated and powder coated.

Measures 7" wide open x 3" high.

Screw pad measures 1" wide.

Includes 1" stainless steel screws. Extra screws are available here.

Sold by the half pair (individual hinge).

Dimensions:
Open: 7" wide x 3" high at screw pad x 2.04" high at center
Closed: 3.75" wide
Thickness at screw pad: 0.14"
Thickness at center: 0.52"
Center-to-center distance between top and bottom holes: 2.35"
Center-to-center distance between top and middle holes: 1.22"
Width of screw pad: 1.03"
Pin diameter: 0.22"
Height of exposed pin when leaves are seperated: 0.98"
