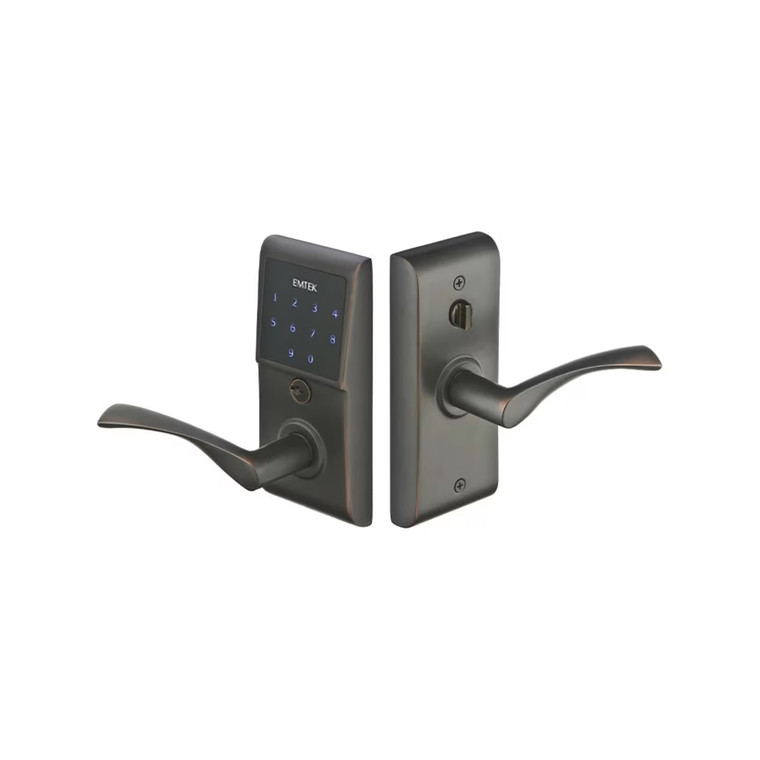

Customizable EMTouch Electronic Keypad Leverset With Choice Backset

The EMTouch Keypad Leverset combines electronic access control with classic hardware styling. The exterior keypad can be programmed with up to 20 unique user codes, allowing controlled access without keys. A backup keyway is included for conventional unlocking from the exterior when needed.

Door Compatibility

• Door thickness: 1-3/8" to 2-1/4"

• Sets for 1-3/8" to 1-5/8" thick doors include a Flat Black adapter

Backset Options

The backset is the distance from the edge of the door to the center of the backplate.

• Standard backsets: 2-3/8" and 2-3/4"

• Optional 5" backset: Specially modified to function with this set

Handing & Style

• Door handing must be specified (see the diagram to determine door handing)

• A variety of lever styles are available to suit both traditional and modern interiors

Finishes Available

Satin Brass, Oil-Rubbed Bronze, Polished Nickel Lifetime, Satin Nickel, Flat Black, and Polished Chrome

Function Options

• Standard function: Interior thumbturn

  • Thumbturn horizontal: outside lever locked; code or key required

  • Thumbturn vertical: outside lever unlocked; free entry

• Optional storeroom function:

  • No thumbturn

  • Outside lever always locked; entry requires a code or key at all times

What’s Included

• Interior and exterior levers

• Latch

• Strike plate

• 9-volt battery

See the technical specifications.
