3rd Point Lock for Cremone Bolts

3rd Point Lock for Cremone Bolts

Frank Allart
SKU:
3rd Point

Call 215-247-0945 for pricing

(No reviews yet)

Used with a cremone bolt to provide a 3rd point of locking.

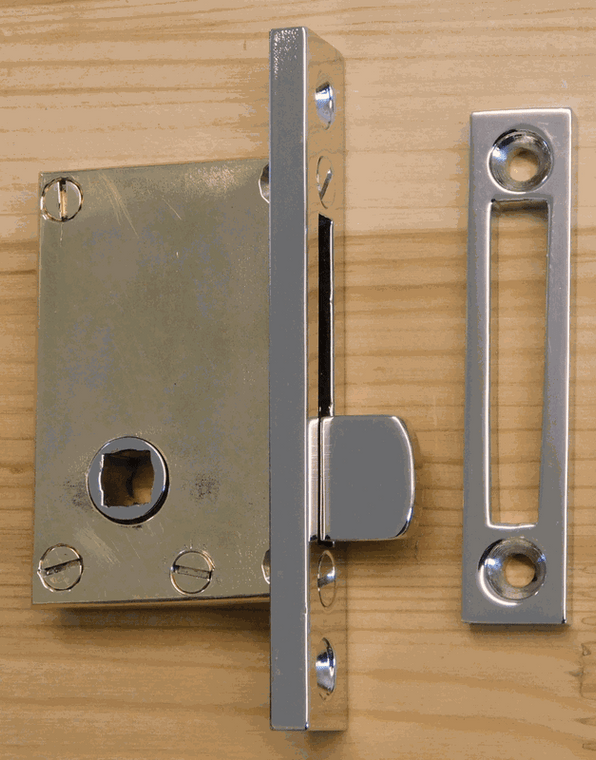

Ninety degree operation. Shown engaged in the first image and retracted in the second image.

Shown in Polished Nickel finish.

Dimensions:
 > Shown in a 30mm (1-3/16") backset.
 > Case depth: 1-13/16".
 > Case height: 2-11/16".
 > Case thickness: 1/2".
 > Faceplate: 3/4" wide x 4-3/16" tall.
 > Strike: 5/8" x 3-1/8".
 > Latch: 9/16" projection.
Current Stock:
Description

Used with a cremone bolt to provide a 3rd point of locking.

Ninety degree operation. Shown engaged in the first image and retracted in the second image.

Shown in Polished Nickel finish.

Dimensions:
 > Shown in a 30mm (1-3/16") backset.
 > Case depth: 1-13/16".
 > Case height: 2-11/16".
 > Case thickness: 1/2".
 > Faceplate: 3/4" wide x 4-3/16" tall.
 > Strike: 5/8" x 3-1/8".
 > Latch: 9/16" projection.
