Richelieu Satin Black Cremone Bolt
Sale

Richelieu Satin Black Cremone Bolt

Richelieu
SKU:
8884390
Availability:
3 week preparation period before shipping.
$752.45 $537.46
(No reviews yet)

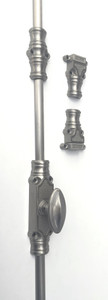

Cremone bolt suitable for full inset cabinet doors and inswinging windows. Can be used on doors or outswinging windows with other strikeplates (not included).

Knob turns 180 degrees from fully locked to fully unlocked.

Rods are made of heavy aluminum and all other parts are cast iron or steel.

Suitable for openings up to 104-7/8".

Provided with two surface strikes (pictured).

Provided with one center guide (pictured).

Provided with two end guides (pictured).

Only provided with surface strikes. Mortise strikes, universal strikes, and angle strikes are not included and are available by clicking here.

Dimensions:
 > Center mechanism measures 5-13/16" tall x 1-11/16" wide x 3-1/16" projection.
 > Knob measures 2-1/2" tall.
 > Strikes measure 1-5/8" wide x 1-5/16" tall x 5/8" projection.
 > End guides measure 1-5/8" wide x 2-7/16" tall x 5/8" projection.
 > Center guide measures 1-5/8" wide x 3-1/4" tall x 5/8" projection.
 > Rods measure 51-3/16" long x 5/8" wide x 5/16" thick.
 > Maximum retracted length: 104-7/8".
 > Maximum extended length: 105-7/8".
 > Rod travel: 1/2".



Current Stock:
Adding to cart… The item has been added
Description

Cremone bolt suitable for full inset cabinet doors and inswinging windows. Can be used on doors or outswinging windows with other strikeplates (not included).

Knob turns 180 degrees from fully locked to fully unlocked.

Rods are made of heavy aluminum and all other parts are cast iron or steel.

Suitable for openings up to 104-7/8".

Provided with two surface strikes (pictured).

Provided with one center guide (pictured).

Provided with two end guides (pictured).

Only provided with surface strikes. Mortise strikes, universal strikes, and angle strikes are not included and are available by clicking here.

Dimensions:
 > Center mechanism measures 5-13/16" tall x 1-11/16" wide x 3-1/16" projection.
 > Knob measures 2-1/2" tall.
 > Strikes measure 1-5/8" wide x 1-5/16" tall x 5/8" projection.
 > End guides measure 1-5/8" wide x 2-7/16" tall x 5/8" projection.
 > Center guide measures 1-5/8" wide x 3-1/4" tall x 5/8" projection.
 > Rods measure 51-3/16" long x 5/8" wide x 5/16" thick.
 > Maximum retracted length: 104-7/8".
 > Maximum extended length: 105-7/8".
 > Rod travel: 1/2".
