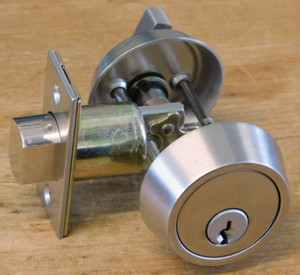

Traditional Small Bore 1-3/4" Backset Deadbolt
KilianThis is the perfect deadbolt for a narrow stile door.
Fits 1-3/8" to 1-3/4" thick doors. Can accommodate even thicker doors with additional parts. Contact us for details.
1-3/4" Backset. Fits stiles as narrow as 3". Requires a 1-1/2" hole through the door. Requires an edge boring of 1". Faceplate measures 2-1/4" high x 1-1/8" wide. Optional spacer included for 1-3/8" thick doors. Exterior cylinder ring measures 2-1/4" diameter with a projection of 5/8".
With thin door ring, the projection on the exterior is 0.900".
Interior turn plate measures 1.962" diameter with a projection of 1-1/4".
Includes strike plate and dust box.
Standard Schlage compatible keyway. Includes 2 keys.
This is the perfect deadbolt for a narrow stile door.
Fits 1-3/8" to 1-3/4" thick doors. Can accommodate even thicker doors with additional parts. Contact us for details.
1-3/4" Backset. Fits stiles as narrow as 3". Requires a 1-1/2" hole through the door. Requires an edge boring of 1". Faceplate measures 2-1/4" high x 1-1/8" wide. Optional spacer included for 1-3/8" thick doors. Exterior cylinder ring measures 2-1/4" diameter with a projection of 5/8".
With thin door ring, the projection on the exterior is 0.900".
Interior turn plate measures 1.962" diameter with a projection of 1-1/4".
Includes strike plate and dust box.
Standard Schlage compatible keyway. Includes 2 keys.
- Shipping:
- Typically ships within 24 to 48 hours.
-
-
-
