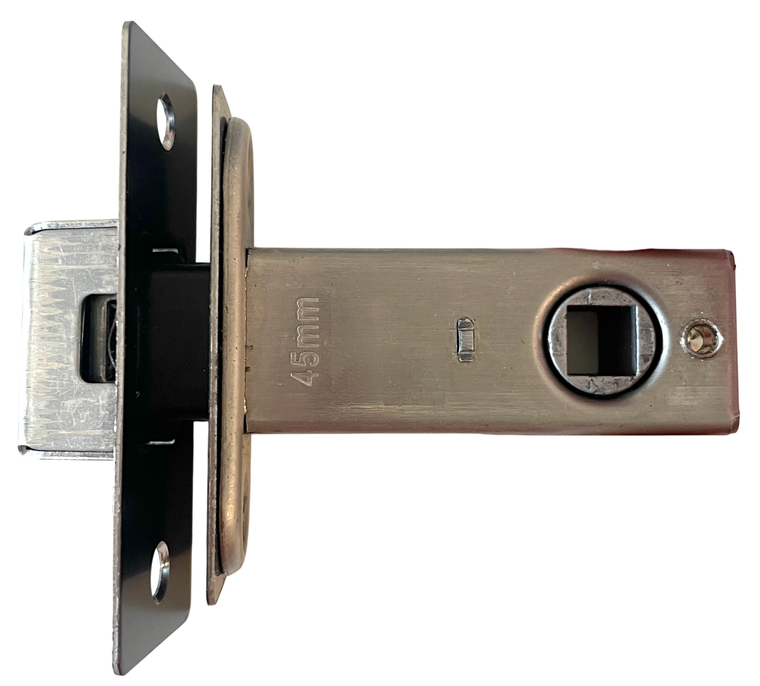

Extra Short 1-3/4" Backset Magnetic Tubular Latch For Use With Passage Sets
$9.99
(No reviews yet)
Write a Review
Extra Short 1-3/4" Backset Magnetic Tubular Latch For Use With Passage Sets
To get even lower prices, purchase items in bulk!
- Buy 10 or above and pay only $7.72 each
This 1-3/4" backset magnetic tubular latch is designed for use on narrow stile doors with passage sets. As the door approaches the jamb, the magnetic latch automatically extends into the magnetic strike plate, securely holding the door closed. Turning the handle retracts the latch, allowing the door to open.
Because the strike plate has no lip, this magnetic latch provides a particularly clean, streamlined appearance.
This latch may be used with knobs or levers.
The finish is flat black.
Recommended for use with Emtek passage sets. When pairing this latch with Emtek, the Emtek spring-loaded spindles should be replaced with a solid spindle (available below).
Specifications
- Hub size: 8mm square
- Backset: 1.77" (45mm)
- Throw: 0.39"
- Faceplate: 2.29" H × 0.95" W × 0.14" T
- Faceplate screw holes: 1.61" C-to-C
- Latch body: 0.89" H × 0.68" W
- Maximum overall length: 2.43"
- Strike plate: 2.80" H × 1.07" W × 0.58" T
- Strike plate screw holes: 2.12" C-to-C
Includes
- Magnetic tubular latch
- Magnetic strike plate
- Screws
This 1-3/4" backset magnetic tubular latch is designed for use on narrow stile doors with passage sets. As the door approaches the jamb, the magnetic latch automatically extends into the magnetic strike plate, securely holding the door closed. Turning the handle retracts the latch, allowing the door to open.
Because the strike plate has no lip, this magnetic latch provides a particularly clean, streamlined appearance.
This latch may be used with knobs or levers.
The finish is flat black.
Recommended for use with Emtek passage sets. When pairing this latch with Emtek, the Emtek spring-loaded spindles should be replaced with a solid spindle (available below).
Specifications
- Hub size: 8mm square
- Backset: 1.77" (45mm)
- Throw: 0.39"
- Faceplate: 2.29" H × 0.95" W × 0.14" T
- Faceplate screw holes: 1.61" C-to-C
- Latch body: 0.89" H × 0.68" W
- Maximum overall length: 2.43"
- Strike plate: 2.80" H × 1.07" W × 0.58" T
- Strike plate screw holes: 2.12" C-to-C
Includes
- Magnetic tubular latch
- Magnetic strike plate
- Screws
